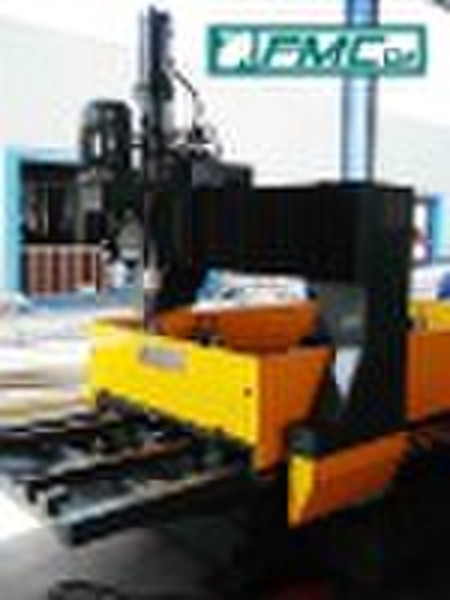

CNC Plate Processing Center PGD series

PGD Series is CNC drilling system designed for processing pre-cut steel plates like, Splice plate, Flanges, etc.. There is an X-Y worktable with 4 working stations. The operator can load & unload plate simultaneously from both sides of the worktable. Computer based control system can read Tekla (*,dstv) drawings and Autocad (*.dxf) drawings directly without mass manually inputting. There’re 12 / 16 hydraulic pinches to firmly catch the plate while drilling to ensure the working stability. High positioning accuracy with numerical controller ensures reliable precise operation. Drilling of splice plates in pile ensures higher productivity. There are optional drilling spindles--H.S.S. Drilling Spindle and Carbide Drilling Spindle can be equipped with the machine. The machine equipped with High Speed Drilling Spindle can have a Max. rotation speed up to 1500 rpm. Also, user can change the hydraulic feeding spindle to be a servo motor controlled feeding spindle for drilling blind hole with required depth. An external mist cooling device is available for lubricating and cooling the drill bit. Operating range Model PGD1650 PGD3016 Max. size of workpiece 1650 x 1000 x 80mm 3000 x 1600 x 80mm Drilling unit No. of Drilling Spindle 1 1 Drilling Dia. Φ50 mm Φ50 mm Rotation Speed of Spindle: Stepless 120 560 rpm Stepless 120 560 rpm Precision of holes’ position ±0.5mm ±0.5mm Control system Type Computer + Mitsubishi PLC + Modules Computer + Mitsubishi PLC + Modules Importing Software AUTOCAD (*.dxf), X-STEEL (*.nc1, dstv)AUTOCAD (*.dxf), X-STEEL (*.nc1, dstv) Machine overall info Dimension (L x W x H) 5810 x 3660 x 2790mm 6200 x 3660 x 2790mm Total Weight 4,000 kg 6,000 kg
